CS4 Seal.

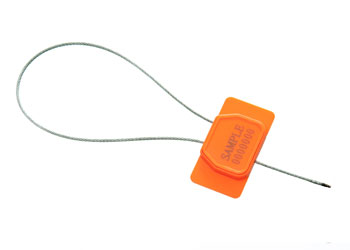

Acme CS4 Seal
















The Acme CS4 Seal is a variable length cable seal manufactured from high quality materials.

The locking body mechanism is protected with a high-impact ABS plastic and the cable is manufactured from non-preformed galvanised steel.

The cable has a welded tip for ease of locking and should the cable be cut it unravels making it impossible to re-lock the seal again without showing obvious signs of tampering.

The design of the plasticised body allows a large marking area for bar or QR coding.

The seal requires cutters for removal.


Recommended applications

Trailers, Containers, Rail Freight, Refineries,
Warehouses.

Material

Body - ABS plastic cover with steel lock mechanism
Cable - Galvanised steel

Available Cable Lengths

20cm – 400cm

Cable Diameter (mm)

1.6mm

Average Breaking Strength

100kg

Marking

Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Bar or QR coding
